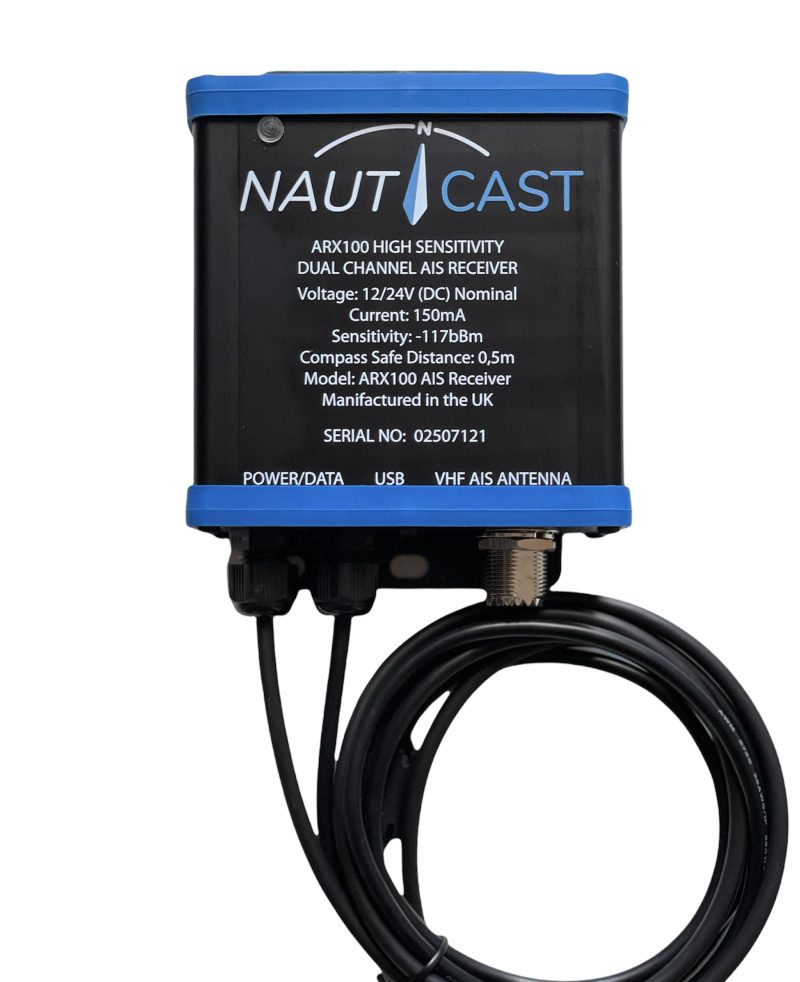

Nauticast ARX100 AIS Receiver

Gelişmiş çekirdek teknolojisi, üstün operasyonel performans ve güvenilirlik sağlar. Gelişmiş HF-AIS teknolojisi, hedef tespitini ve gerçek zamanlı görüntülemeyi en üst düzeye çıkarmak için üstün AIS mesaj işleme olanağı sunar. Krypton, geliştirici entegrasyon kiti ile tam olarak desteklenmektedir.

Açıklama

True dual channel functionality ensures no AIS message is missed

Multiple connectors including NMEA 0183 for simple plug and play

Simple installation, configuration and operation

Minimum power consumption

Data interfaces
• USB
• NMEA0183 38.4k baud output
(AIS data and multiplex output)
• NMEA0183 4.8k baud input
(multiplex input)

VHF receivers
• Receiver 1 frequency: 161.975 MHz
• Receiver 2 frequency: 162.025 MHz
• Receiver sensitivity: <-117dBm at
20% packet error rate

Environmental
• Operating temperature: -25°C to +55°C
Physical
• Dimensions: 55 x 50 x 13.1mm

Power
• USB power or DC power
• DC power, 12 to 24VDC (9.6V min
to 28.8V max)
• Power consumption: 90mA @12VDC

Documents - Software



ARX-100 Driver
